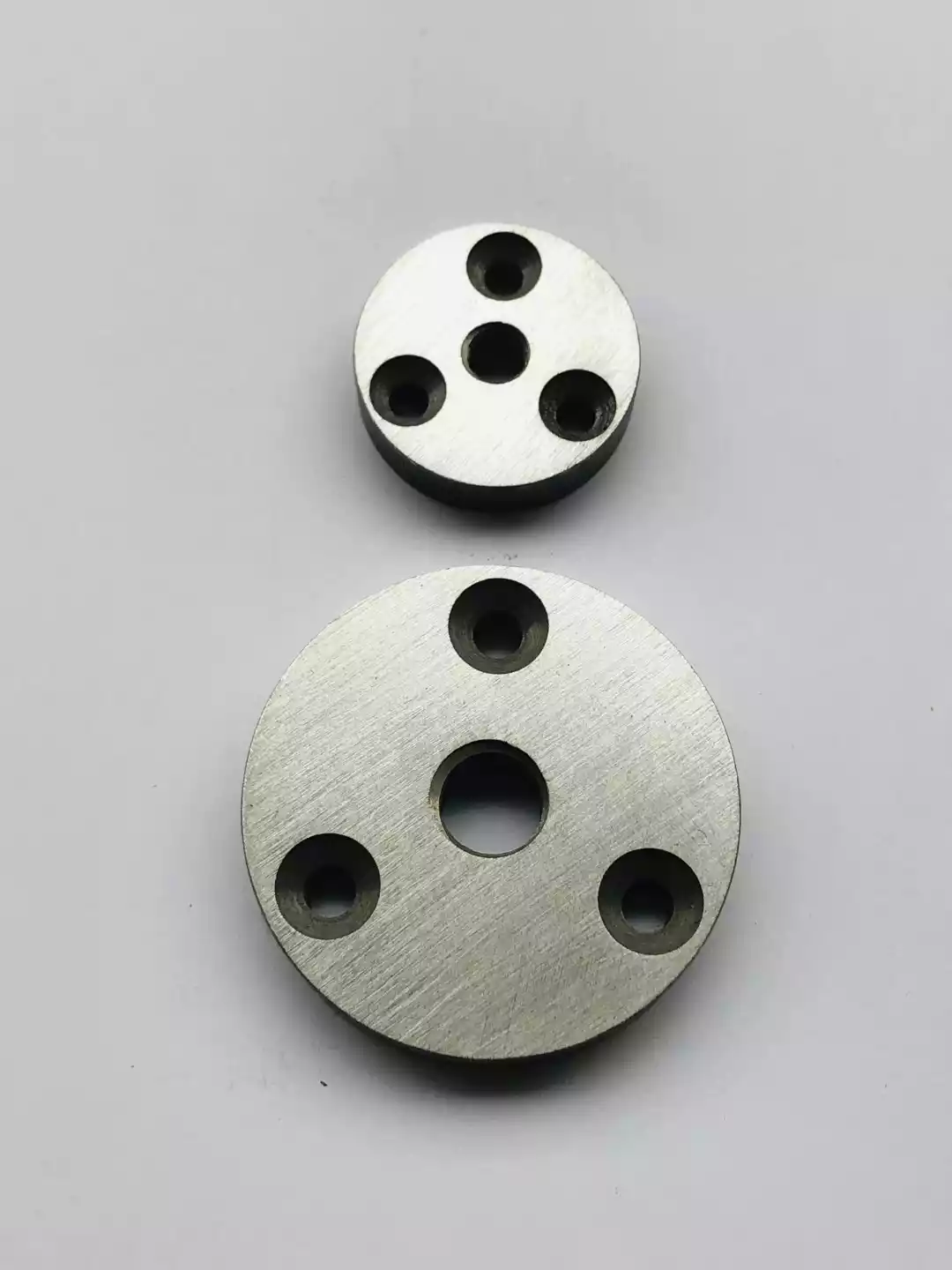

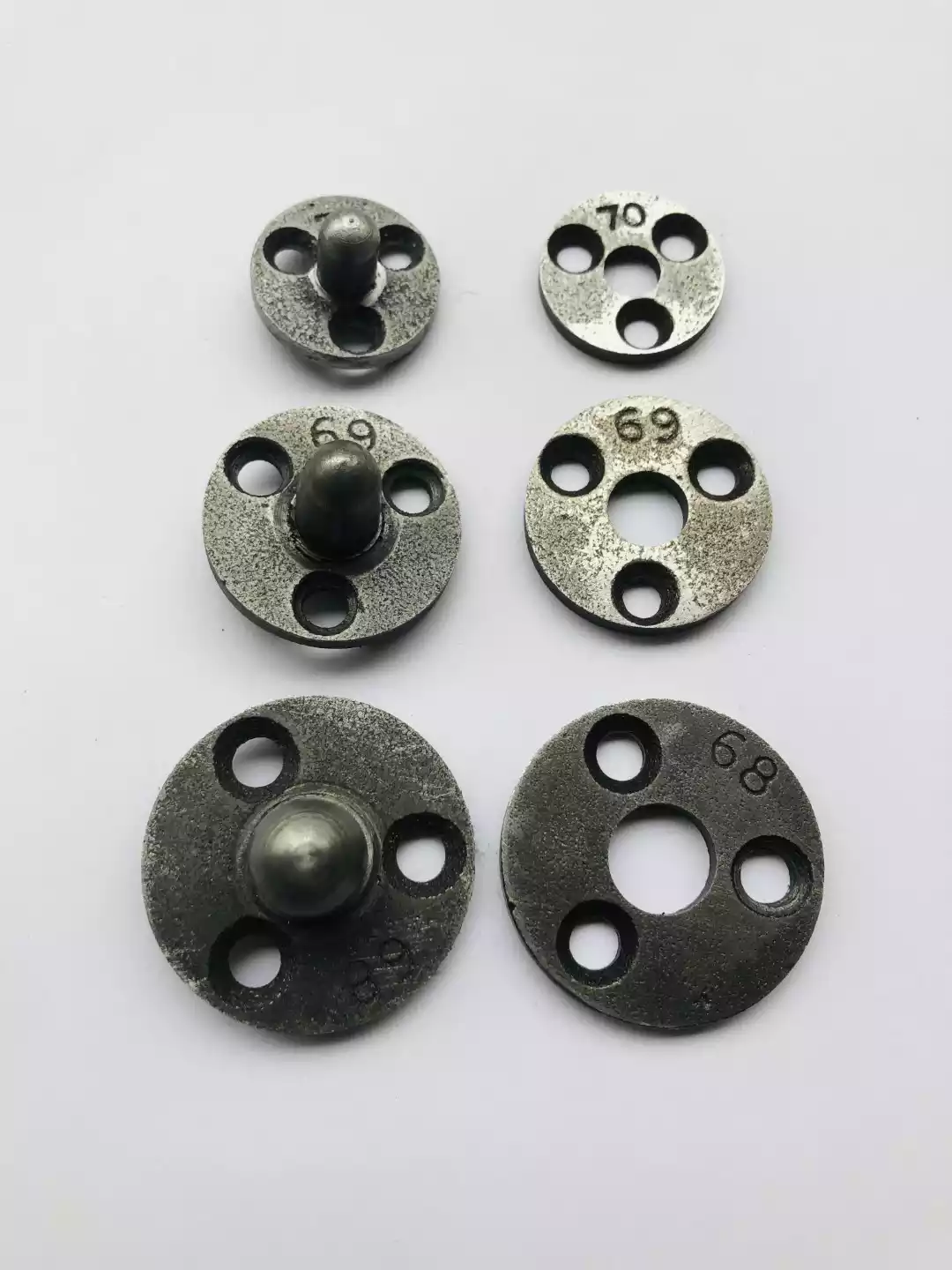

MALLEABLE IRON DOWELS
Circular melleable iron dowels. Machined edges, pegs, bores and location points – all to fine limits. Fully interchangeable with 3 countersunk holes in each.
| Product Code | Size Details | Unit |
| FIX06000 | No. 70 Pegs – 1″ | 10 |
| FIX06001 | No. 70 Plates – 1″ | 10 |
| FIX06002 | No. 69 Pegs – 1.1/4″ | 10 |
| FIX06003 | No. 69 Plates – 1.1/4″ | 10 |
| FIX06004 | No. 68 Pegs – 1.1/2″ | 10 |
| FIX06005 | No. 68 Plates – 1.1/2″ | 10 |
HEAVY DUTY DOWELS
Malleable iron heavy duty rectangular dowels. Thick precision cast plates with rounded corners for router insertion
| Product Code | Size Details | Unit |
| FIX25000 | 85X50 Pegs | 1 |
| FIX25001 | 85X50 Plates | 1 |
| FIX25002 | 115×75 Pegs | 1 |
| FIX25003 | 115X75 Plates | 1 |
| FIX25004 | 150X100 Pegs | 1 |
| FIX25005 | 150X100 Plates | 1 |
LIFTING PLATES
Mild steel, designed for heavy duty work where larger lifting plates are not practical. Easily fitted with forstner or centre bits
| Product Code | Size Details | Unit |
| FIX17001 | No. 101 – 1″ dia (1/4 thick, 1/4 whit.) |
10 |
| FIX17002 | No. 102 – 1.1/4″ dia (5/16 thick, 5/16 whit.) |
10 |
| FIX17003 | No. 103 – 1.1/2″ dia (3/8 thick, 3/8 whit.) |
10 |
| FIX17004 | No. 104 – 2″ dia (3/8 thick, 1/2 whit.) |
10 |
| FIX17005 | No. 105 – 2″ dia (1/2 thick, 1/2 whit.) |
10 |
| FIX17006 | No. 106 – 2″ dia (5/8 thick, 3/4 whit.) |
10 |
| FIX17007 | No. 107 – 1.1/2″ dia (3/8 thick, 12mm whit.) |
10 |
| FIX17009 | No. 109 – 1.1/2″dia (3/8 thick, 10mm whit.) |
10 |

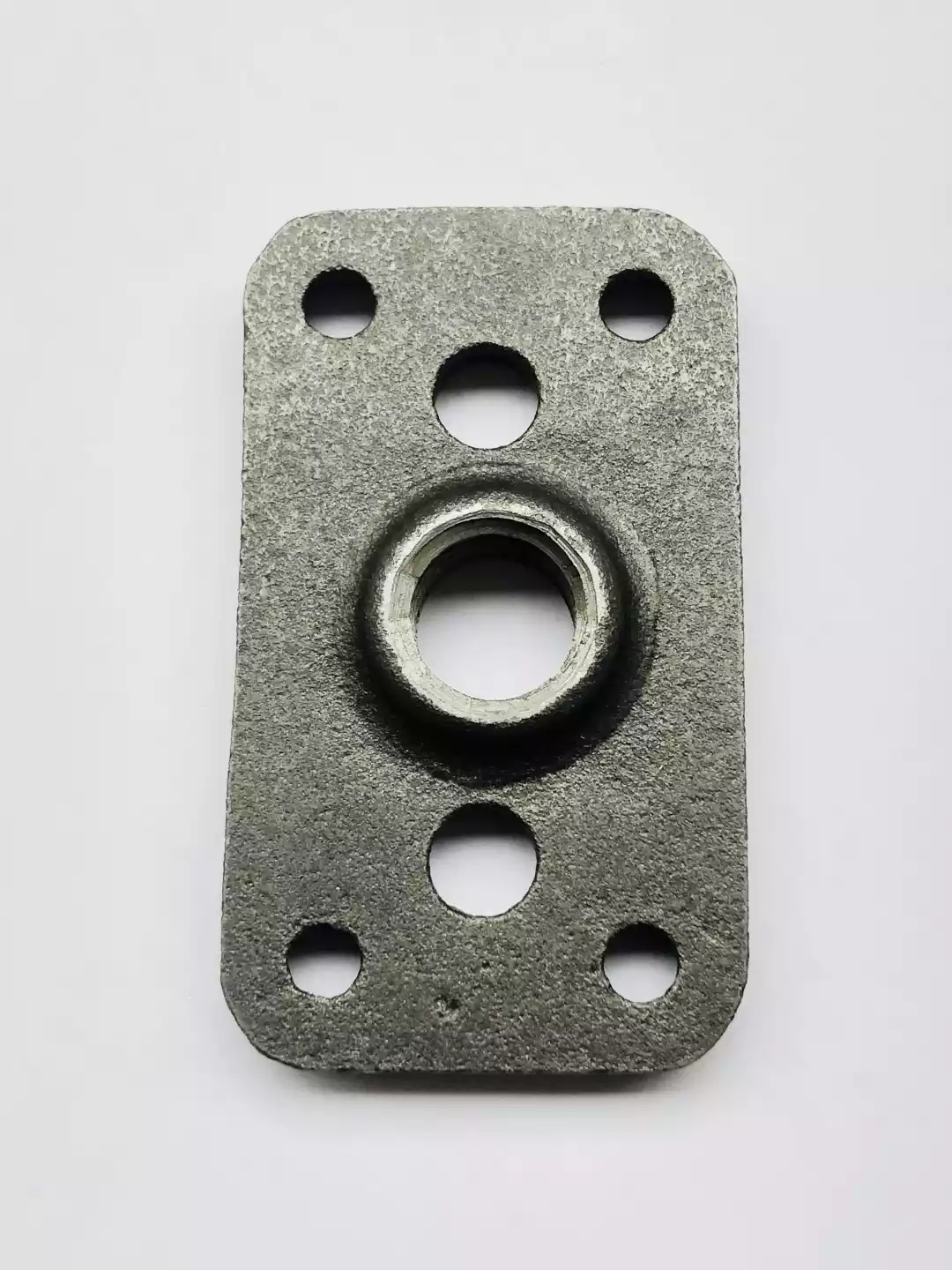

RAPPING PLATES
Malleable iron rapping and lifting plates. Thick precision cast plates with rounded corners for router insertion
| Product Code | Size Details | Unit |
| FIX13000 | 85X50-1 (1/2″ whit.) | 10 |
| FIX13001 | 85X50-10 (5/8″ whit.) | 10 |
| FIX13002 | 85X50-11 (3/4″ whit.) | 10 |
| FIX13011 | 115X75-10 (3/4″ whit.) | 10 |
| FIX13020 | 150X100-1 (3/4″ whit.) | 10 |
| FIX13021 | 150X100-1 (1″ whit.) | 10 |
LIFTING STRAPS
Mild steel, heavy duty
| Product Code | Size Details | Unit |
| FIX18004 | Lifting straps 4″ | 10 |
| FIX18006 | Lifting straps 6″ | 10 |
| FIX18008 | Lifting straps 8″ | 10 |
| FIX18010 | Lifting straps 10″ | 10 |
| FIX18012 | Lifting straps 12″ | 10 |
| FIX18014 | Lifting straps 14″ | 10 |
